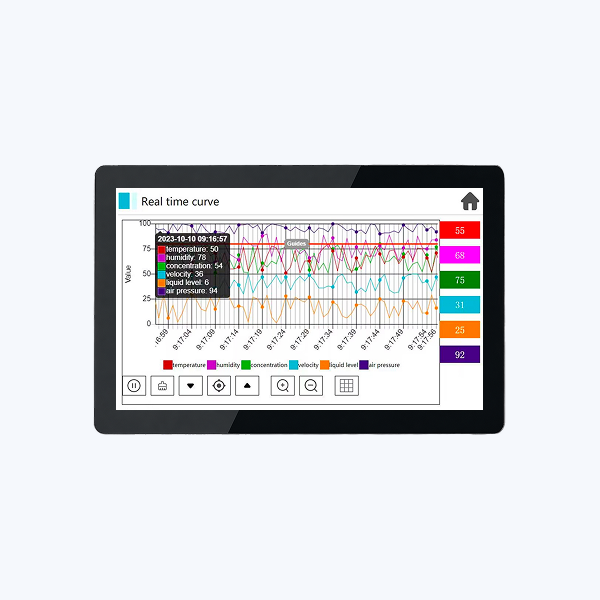

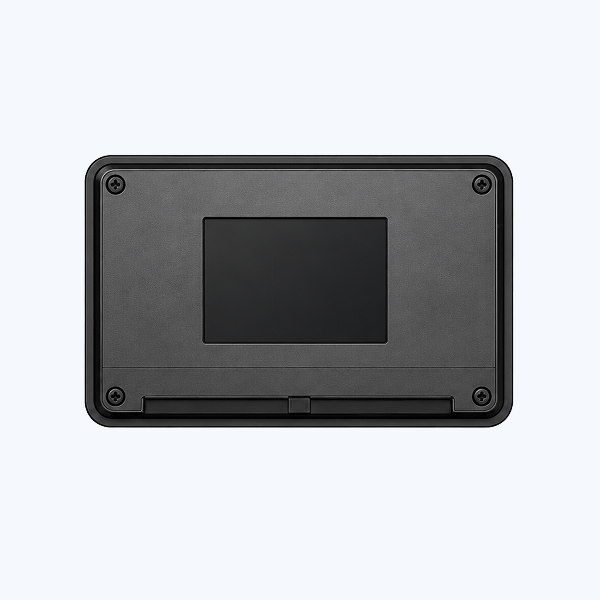

HT3000-D Series IoT HMI

[elementor-template id=”641″]

High-Performance Hardware

A high-resolution HD screen and a built-in quad-core high-performance processor deliver smooth screen transitions, fast data processing, and stable long-term operation.

IPS Wide-Viewing-Angle Display

IPS hard-screen technology provides true color reproduction and a wide viewing angle for a sharper image. Its integrated design gives users a modern and engaging operator experience.

Secure Cloud Identity Management

A dedicated device authentication infrastructure and enterprise cloud platform support give machine builders and system integrators safer, more efficient equipment management.

Remote PLC Management

Supports remote upload, download, online monitoring, fault diagnosis, and debugging of PLC programs, speeding up maintenance processes and reducing service costs.

Advanced Voice Communication

Supports microphone and speaker via USB, text-to-speech, voice announcements, intercom communication, and cloud-based voice communication functions.

Local Video Monitoring

Displays live footage from external camera systems directly on the device, making it easy to track processes in real time.

Video Playback Support

Supports playing training videos, operating instructions, and process visuals directly on the HMI screen, making it easier for operators to use.

Remote Data Interaction

Enables secure data exchange between field equipment and cloud systems, allowing production information to be shared in real time.

Remote Access and Monitoring

Allows machines and production lines to be monitored remotely over the internet, making maintenance, control, and service processes more efficient.

Remote Data Collection

Transfers production data from various PLCs and automation devices to a central system, supporting analysis, reporting, and performance evaluation.

Real-Time Alarm Notifications

Instantly relays faults and process alarms to the relevant users, shortening response time and improving production continuity.

ERP and MES Integration

Communicates directly with ERP, MES, and other enterprise databases, enabling seamless transfer of production data to central management systems.

Centralized Remote Control

Enables multiple machines and production lines to be monitored and remotely controlled from a single centralized platform.

Specification	Parameter
Software	Programming software: HTCloud Designer
Display	Display type: 4" TFT
	Resolution: 800×480 pixels
	Color: 16.7M
	Brightness (cd/m²): 450 Cd/m²
	Touch type: Resistive touchscreen
Storage	Flash: 4GB
	RAM: 512M
Backlight	Backlight type: LED
	Backlight lifetime: >30000 hours
	Automatic sleep mode: Supported and configurable
I/O Port	4G: Optional
	WIFI: Optional
	Ethernet port: 10/100 Base-T
	COM port: COM1: RS232, COM2: RS485
	USB HOST: USB 2.0×1
	Printer port: COM1: RS232, COM2: RS485
Power	Input power: 24±20% VDC
	Power consumption: <6W
	Power protection: Surge protection
	Voltage resistance: 500 VAC
	Isolation resistance: over 50MΩ @500VDC
	Vibration endurance: 10-57Hz amplitude 0.075mm, acceleration 1G, 10 times each on X, Y, Z axes
Environment	Cooling type: Natural air cooling
	Protection class: IP65
	Storage temperature: -20°C ~ 70°C
	Operating temperature: -10°C ~ 60°C
	Relative humidity: 10-90% RH (non-condensing)
Structure	Housing material: ABS+PC
	Outer dimensions (WxHxD): 137×85×30 mm
	Cutout size (WxH): 132×80 mm
	Net weight: 0.3 kg

Specification	Parameter
Platform	Linux
Software	Programming software: HTCloud Designer
Display	Display type: 15.6" TFT
	Resolution: 1920×1080 pixels
	Color: 2.6M
	Brightness (cd/m²): 400 Cd/m²
	Touch type: Resistive touchscreen
Storage	Flash: 4GB
	RAM: 1G
Backlight	Backlight type: LED
	Backlight lifetime: >30000 hours
	Automatic sleep mode: Supported and configurable
I/O Port	4G: Optional
	WIFI: Optional
	Ethernet port: 10/100 Base-T
	COM port: COM1: RS232, COM2: RS485
	COM2: RS485
	COM3: RS232
	USB HOST: USB 2.0×2
	Voice: Supported
	Printer port: COM1: RS232, COM2: RS485
Power	Input power: 24±20% VDC
	Power consumption: <15W
	Power protection: Surge protection
	Voltage resistance: 500 VAC
	Isolation resistance: over 50MΩ @500VDC
	Vibration endurance: 10-25Hz (X, Y, Z axis, 2G/30 minutes)
Environment	Cooling type: Natural air cooling
	Protection class: IP65
	Storage temperature: -20°C ~ 60°C
	Operating temperature: 0°C ~ 50°C
	Relative humidity: 10-90% RH (non-condensing)
Structure	Housing material: Aluminum alloy casing, glass panel
	Outer dimensions (WxHxD): 394×256×41 mm
	Cutout size (WxH): 383×245 mm
	Net weight: 2.6 kg

Model	TFT Ekran	Depolama	LAN+COM	USB	Ses	WiFi	Kablosuz	Delik Ölçüsü	Boyut (GxYxD)
HT3000-D4	4.3" 800×480 HD	4GB + 512M	1+2	1	Var	—	—	132×80mm	137×85×30mm
HT3000-D4W		4GB + 512M	1+2	1	Var	Var	—
HT3000-D4E		4GB + 512M	1+2	1	Var	—	Global 4G

Teknik Ölçü Şeması — HT3000-D4

HT3000-D4 dış ölçüler ve bağlantı portları (mm)

Model	TFT Ekran	Depolama	LAN+COM	USB	Yerel Video	Ses	WiFi	Kablosuz	Delik Ölçüsü	Boyut (GxYxD)
HT3000-D15	15.6" 1920×1080	4GB + 1G	1+3	2	Var	Var	—	—	383×245mm	394×256×41mm Alüminyum alaşım gövde
HT3000-D15W		4GB + 1G	1+3	2	Var	Var	Var	—
HT3000-D15E		4GB + 1G	1+3	2	Var	Var	—	Global 4G
HT3000-D15EW		4GB + 1G	1+3	2	Var	Var	Var	Global 4G

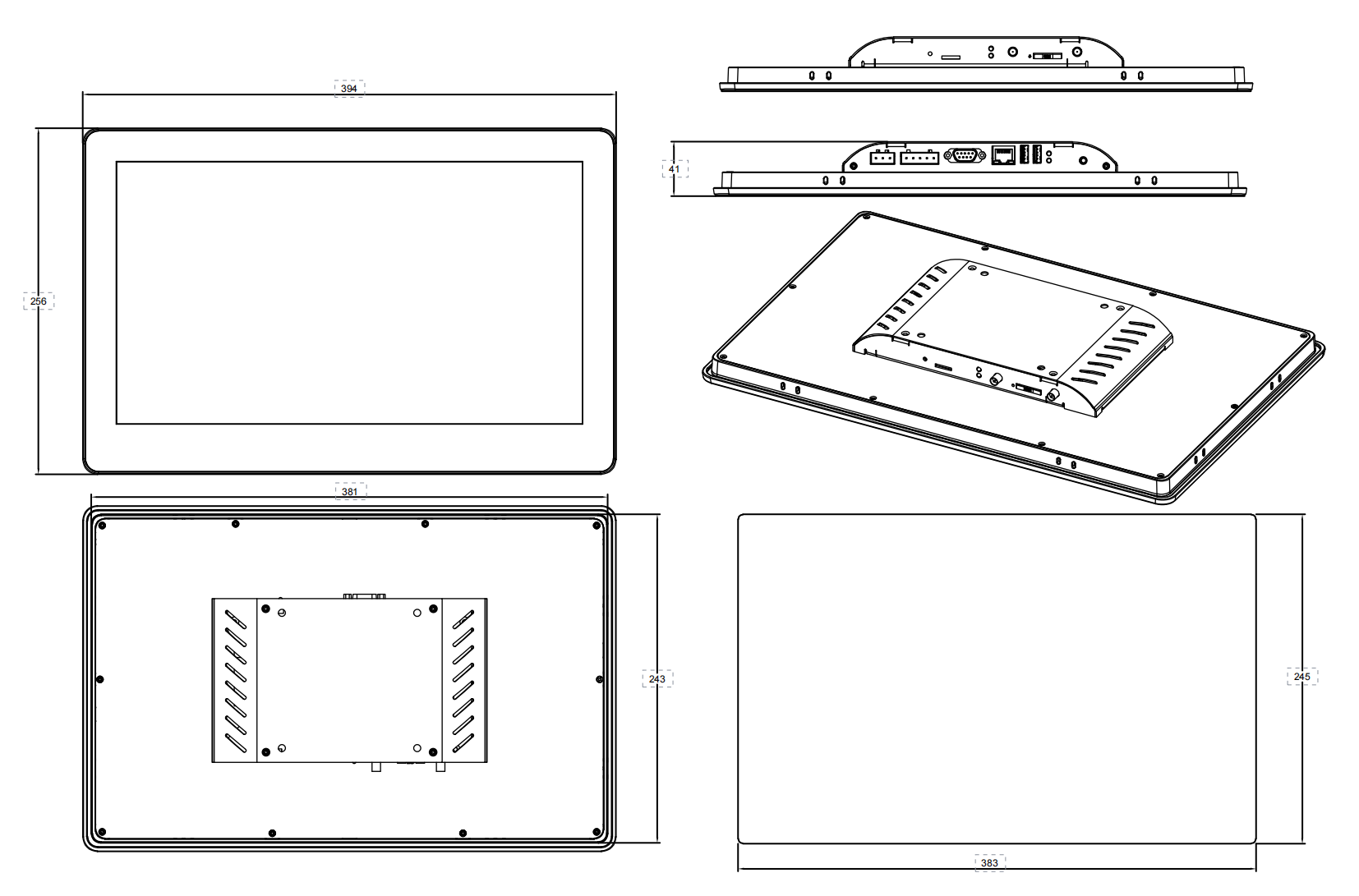

Teknik Ölçü Şeması — HT3000-D15

HT3000-D15 dış ölçüler ve bağlantı portları (mm)
